Technical Specifications
Nichicon LLS1H682MELZ technical specifications.
General
| Capacitance | 6.8mF |
| Package/Case | Radial |
| Diameter | 22mm |
| Features | General Purpose |
| Height | 50mm |
| Height - Seated (Max) | 2.047inch |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 1.74mA |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 3.94A |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS1H682MELZ Datasheet
Download the complete datasheet for Nichicon LLS1H682MELZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

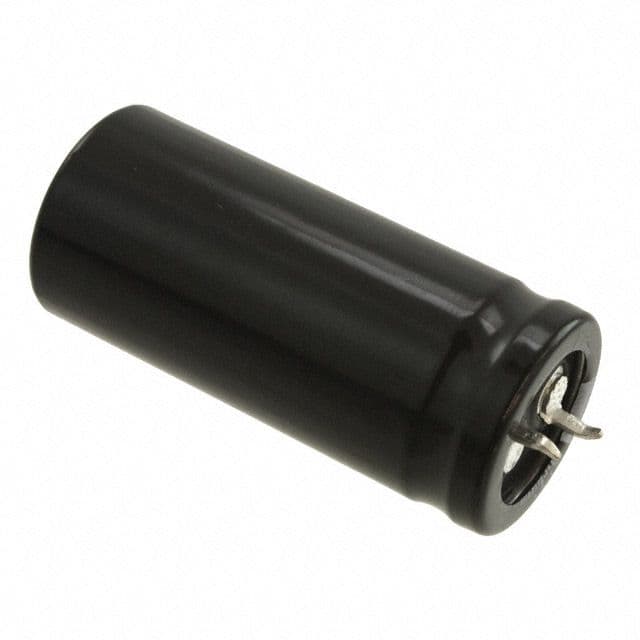

Product Images
