Polarized aluminum electrolytic capacitor featuring 4700µF capacitance and a 63V DC rating. This through-hole mount component offers a 20% tolerance and operates within a -40°C to +85°C temperature range. Key specifications include a 3.54A ripple current, 1.63mA leakage current, and a 3000-hour life expectancy. The radial package has a 30mm diameter and 30mm height with 10mm lead pitch.
PackageRadial
Voltage63V
Capacitance4.7mF
Voltage Rating63V
Quick Jump:
Technical Specifications
Nichicon LLS1J472MELB technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Diameter | 30mm |
| Dielectric Material | Aluminium |
| Height | 30mm |
| Height - Seated (Max) | 1.181inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 1.63mA |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 3.54A |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| Voltage Rating (AC) | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS1J472MELB Datasheet
Download the complete datasheet for Nichicon LLS1J472MELB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

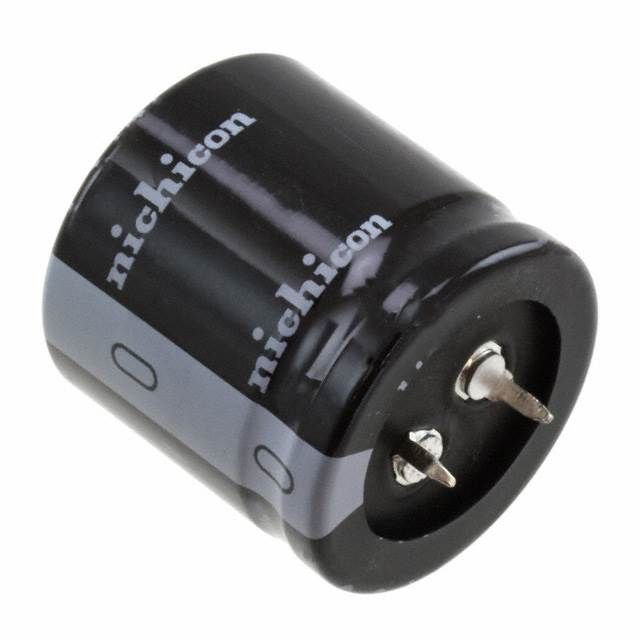

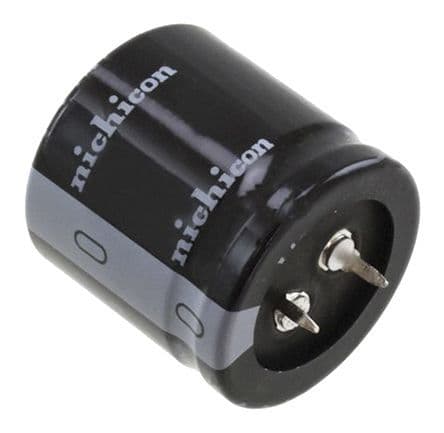

Product Images
