Technical Specifications
Nichicon LLS1K222MELZ technical specifications.
General
| Capacitance | 2.2mF |
| Package/Case | Radial |
| Diameter | 22mm |
| Features | General Purpose |
| Height | 35mm |
| Height - Seated (Max) | 1.457inch |
| Lead Pitch | 10mm |
| Leakage Current | 1.25mA |
| Length | 35mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 2.53A |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 80V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS1K222MELZ Datasheet
Download the complete datasheet for Nichicon LLS1K222MELZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

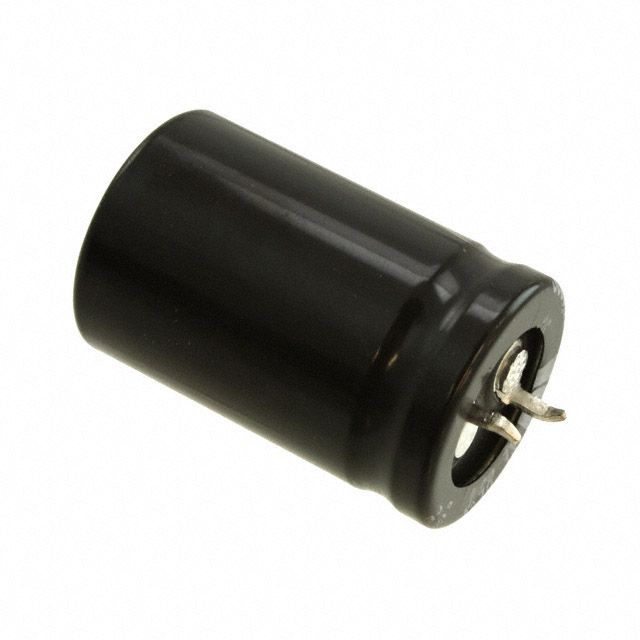

Product Images
