The Nichicon LLS1K392MELB is a 3.9mF aluminum electrolytic capacitor with a 80V voltage rating. It has a radial package with a diameter of 30mm and a height of 35mm. The capacitor is designed for through-hole mounting and has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is RoHS compliant and has a tolerance of 20%.
PackageRadial
Capacitance3.9mF
Voltage Rating80V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LLS1K392MELB technical specifications.
General
| Capacitance | 3.9mF |
| Package/Case | Radial |
| Diameter | 30mm |
| Height | 35mm |
| Height - Seated (Max) | 1.457inch |
| Lead Pitch | 10mm |
| Leakage Current | 1.67mA |
| Length | 35mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 3.7A |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 80V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS1K392MELB Datasheet
Download the complete datasheet for Nichicon LLS1K392MELB to view detailed technical specifications.
No datasheet is available for this part.

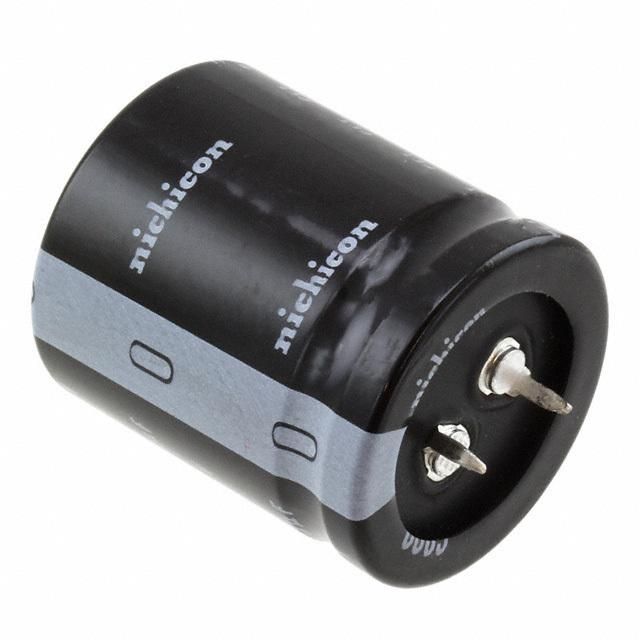

Product Images
