Aluminum electrolytic capacitor with 4.7mF capacitance and 35V DC rated voltage. Features 20% tolerance, 2.46A ripple current, and 1.21mA leakage current at 120Hz. This general-purpose component has a 3000-hour life at 85°C, with a 22mm diameter and 30mm height. Through-hole mounting with a 10mm lead pitch and snap-in termination.
PackageRadial
Voltage35V
Capacitance4.7mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon LLS1V472MELZ technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 22mm |
| Dissipation Factor | 0.35% |
| Features | General Purpose |
| Height | 30mm |
| Height - Seated (Max) | 1.26inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 1.21mA |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 2.46A |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS1V472MELZ Datasheet
Download the complete datasheet for Nichicon LLS1V472MELZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

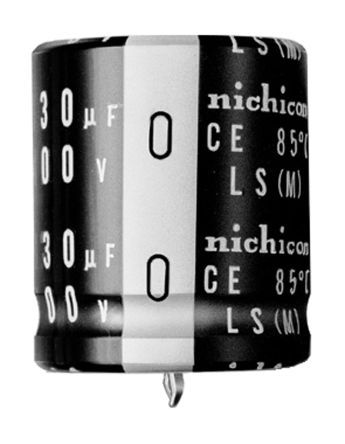

Product Images
