Aluminum electrolytic capacitor, 1500µF capacitance, 100V DC rated voltage, and 20% tolerance. Features a 2.47A ripple current rating, 1.16mA leakage current, and a 3000-hour life at 85°C. Radial construction with snap-in termination, 10mm lead pitch, and 25mm diameter by 30mm height. Designed for through-hole mounting with a minimum operating temperature of -40°C.
PackageRadial
Voltage100V
Capacitance1.5mF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon LLS2A152MELA technical specifications.
General
| Capacitance | 1.5mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Height | 30mm |
| Height - Seated (Max) | 1.26inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Leakage Current | 1.16mA |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.47A |
| Ripple Current (AC) | 2.47A |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS2A152MELA Datasheet
Download the complete datasheet for Nichicon LLS2A152MELA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

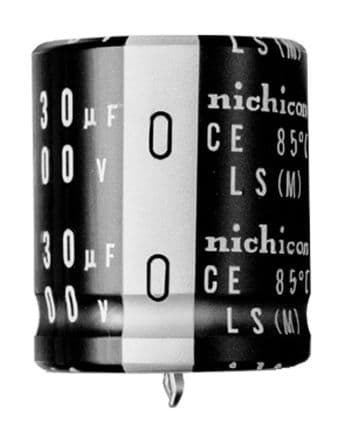

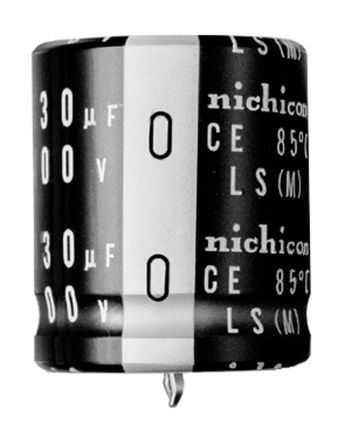

Product Images
