Aluminum electrolytic capacitor with 3300µF capacitance and 100V DC rated voltage. Features a 20% tolerance, 4.15A ripple current capability, and 3000-hour life at 85°C. This radial component has a 25mm diameter, 50mm height, and 10mm lead pitch, designed for through-hole PCB mounting with snap-in termination. Operating temperature range is -40°C to 85°C.
PackageRadial
Voltage100V
Capacitance3.3mF
Voltage Rating100V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Nichicon LLS2A332MELA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Nichicon LLS2A332MELA technical specifications.
General
| Capacitance | 3.3mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 25mm |
| Dielectric Material | Aluminium |
| Features | General Purpose |
| Height | 50mm |
| Height - Seated (Max) | 2.047inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Leakage Current | 1.72mA |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 4.15A |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS2A332MELA Datasheet
Download the complete datasheet for Nichicon LLS2A332MELA to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

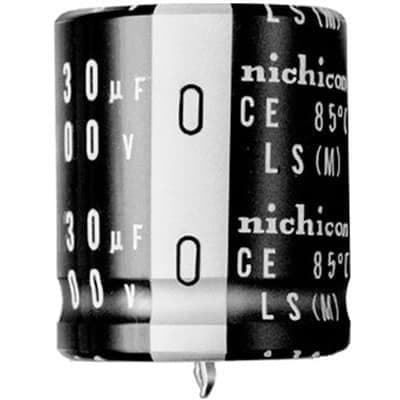

Product Images
