Aluminum electrolytic capacitor with 4700µF capacitance and 100V voltage rating. Features 20% tolerance, 5.26A ripple current, and 2.05mA leakage current. Snap-in termination, radial construction, and through-hole mounting. Dimensions are 30mm diameter and 50mm height, with a 10mm lead pitch. Rated for 3000 hours at 85°C.
PackageRadial
Voltage100V
Capacitance4.7mF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon LLS2A472MELB technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 30mm |
| Dielectric Material | Aluminium |
| Features | General Purpose |
| Height | 50mm |
| Height - Seated (Max) | 2.047inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 10mm |
| Leakage Current | 2.05mA |
| Length | 50mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 5.26A |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS2A472MELB Datasheet
Download the complete datasheet for Nichicon LLS2A472MELB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

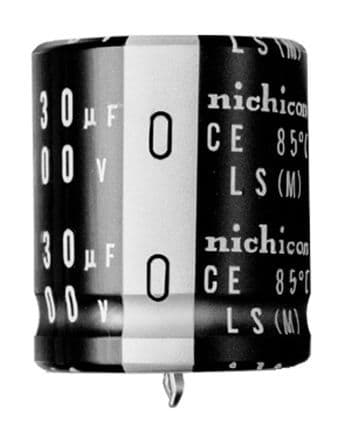

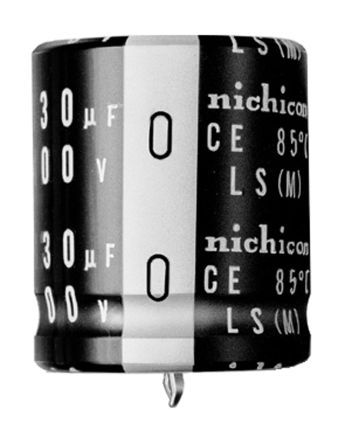

Product Images
