Aluminum electrolytic capacitor with 6.8mF capacitance and 100V DC rated voltage. Features 20% tolerance, 6.01A ripple current, and a 3000-hour life at 85°C. This radial component has a 35mm diameter, 50mm height, and 10mm lead pitch, with snap-in termination for through-hole mounting. RoHS compliant and lead-free.
PackageRadial
Voltage100V
Capacitance6.8mF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon LLS2A682MELC technical specifications.
General
Capacitance
6.8mF
Package/Case
Radial
Construction
RADIAL
Diameter
35mm
Features
General Purpose
Height
50mm
Height - Seated (Max)
2.047inch
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
10mm
Leakage Current
2.47mA
Length
50mm
Life (Hours)
3000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
6.01A
Ripple Current (AC)
6.01A
RoHS Compliant
Yes
Series
LS
Termination
Snap in
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon LLS2A682MELC Datasheet
Download the complete datasheet for Nichicon LLS2A682MELC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

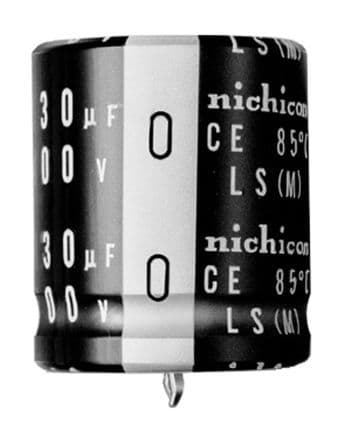

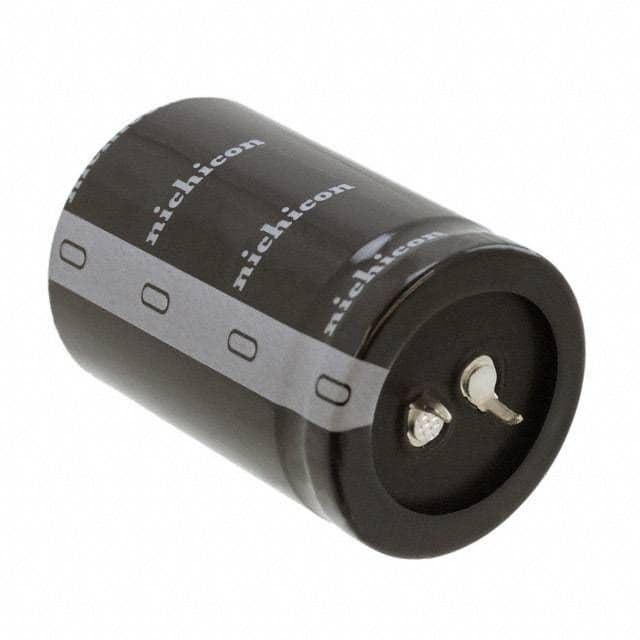

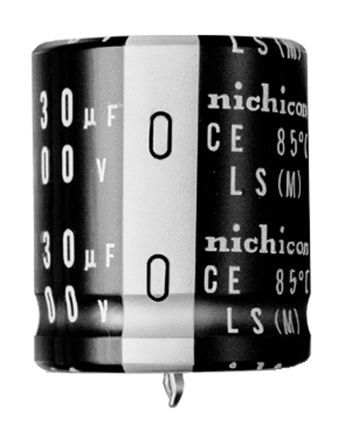

Product Images
