Nichicon
LLS2C152MELB
Cap Aluminum Lytic 1500uF 160V 20% (30 X 35mm) Snap-In 10mm 3960mA 3000h 85°C Bulk
PackageRadial
Capacitance1.5mF
Voltage Rating160V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LLS2C152MELB technical specifications.
General
Capacitance
1.5mF
Package/Case
Radial
Diameter
30mm
Height
35mm
Height - Seated (Max)
1.378inch
Lead Free
Lead Free
Lead Pitch
10mm
Leakage Current
1.46mA
Length
35mm
Life (Hours)
3000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
3.96A
RoHS Compliant
Yes
Series
LS
Termination
Snap in
Tolerance
20%
Voltage Rating
160V
DC Rated Voltage
160V
Compliance
RoHS
Compliant
Datasheet
Nichicon LLS2C152MELB Datasheet
Download the complete datasheet for Nichicon LLS2C152MELB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

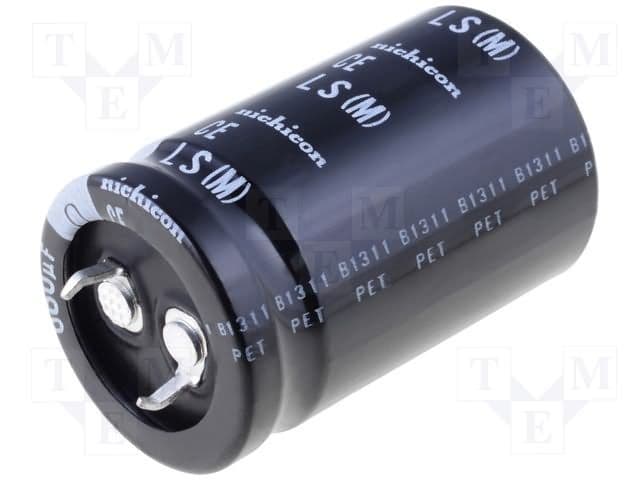

Product Images
