Standard aluminum electrolytic capacitor with 1800µF capacitance and 200V DC rated voltage. Features 20% tolerance, 4.59A ripple current, and 1.8mA leakage current. Snap-in termination, through-hole mounting, and a 10mm lead pitch. Dimensions are 35mm diameter and 40mm height, with a lifespan of 3000 hours at 85°C.
PackageRadial
Voltage200V
Capacitance1.8mF
Voltage Rating200V
Quick Jump:
Technical Specifications
Nichicon LLS2D182MELC technical specifications.
General
| Capacitance | 1.8mF |
| Package/Case | Radial |
| Diameter | 35mm |
| Height | 40mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 1.8mA |
| Length | 40mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 4.59A |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 200V |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS2D182MELC Datasheet
Download the complete datasheet for Nichicon LLS2D182MELC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

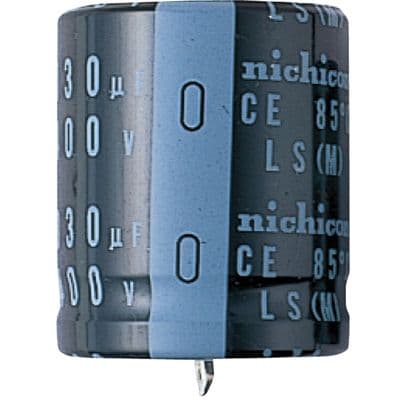

Product Images
