Aluminum electrolytic capacitor with 220µF capacitance and 200V DC rating. Features 20% tolerance, 1.19A ripple current capability, and 620µA leakage current. Snap-in radial termination for through-hole PCB mounting, with a 10mm lead pitch. Operates from -40°C to 85°C with a 3000-hour life expectancy. Dimensions are 20mm diameter and 25mm height.
PackageRadial
Voltage200V
Capacitance220uF
Voltage Rating200V
Quick Jump:
Technical Specifications
Nichicon LLS2D221MELY technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 20mm |
| Dielectric Material | Aluminium |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 620uA |
| Length | 25mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.19A |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 200V |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS2D221MELY Datasheet
Download the complete datasheet for Nichicon LLS2D221MELY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

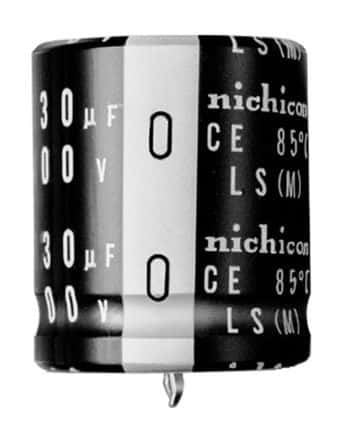

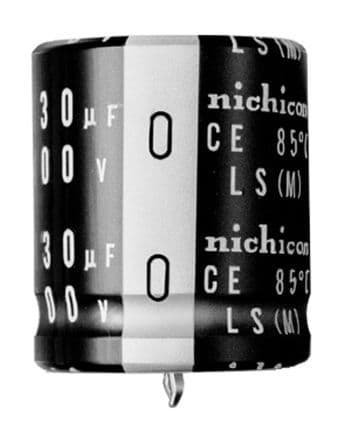

Product Images
