Standard aluminum electrolytic capacitor with 470µF capacitance and 250V DC rated voltage. Features 20% tolerance, 2.04A ripple current at 120Hz, and a dissipation factor of 0.15%. This through-hole component has a 30mm diameter, 25mm height, 10mm lead pitch, and snap-in termination. Rated for 3000 hours at 85°C, it operates from -40°C to 85°C and is lead-free and RoHS compliant.
PackageRadial
Voltage250V
Capacitance470uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Nichicon LLS2E471MELB technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Diameter
30mm
Dissipation Factor
0.15%
Height
25mm
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
10mm
Leakage Current
1.02mA
Length
25mm
Life (Hours)
3000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.04A
RoHS Compliant
Yes
Series
LS
Termination
Snap in
Test Frequency
120Hz
Tolerance
20%
Voltage
250V
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Nichicon LLS2E471MELB Datasheet
Download the complete datasheet for Nichicon LLS2E471MELB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

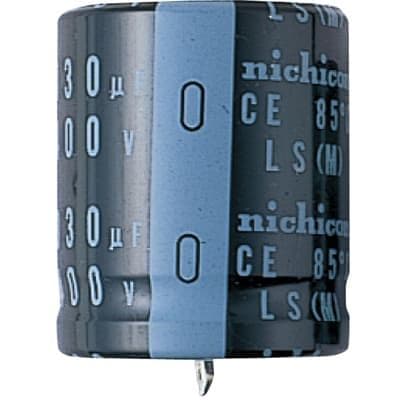

Product Images
