Nichicon
LLS2E681MELB
Cap Aluminum Lytic 680uF 250V 20% (30 X 30mm) Snap-In 10mm 2710mA 3000h 85°C Bulk
PackageRadial
Capacitance680uF
Voltage Rating250V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LLS2E681MELB technical specifications.
General
Capacitance
680uF
Package/Case
Radial
Diameter
30mm
Height
30mm
Height - Seated (Max)
1.181inch
Lead Free
Lead Free
Lead Pitch
10mm
Leakage Current
1.23mA
Length
30mm
Life (Hours)
3000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
2.71A
RoHS Compliant
Yes
Series
LS
Termination
Snap in
Tolerance
20%
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Nichicon LLS2E681MELB Datasheet
Download the complete datasheet for Nichicon LLS2E681MELB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

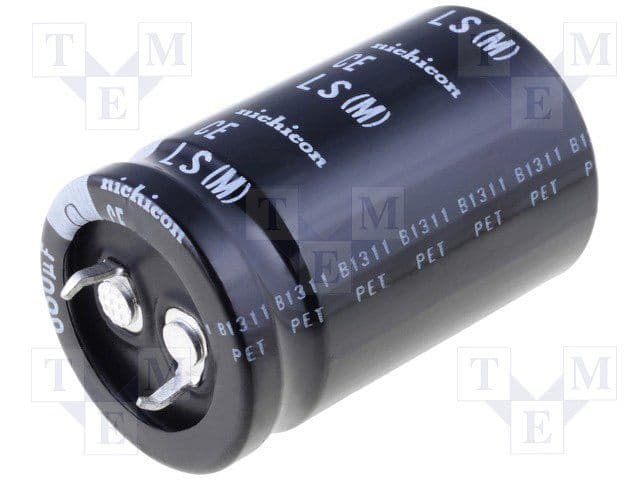

Product Images
