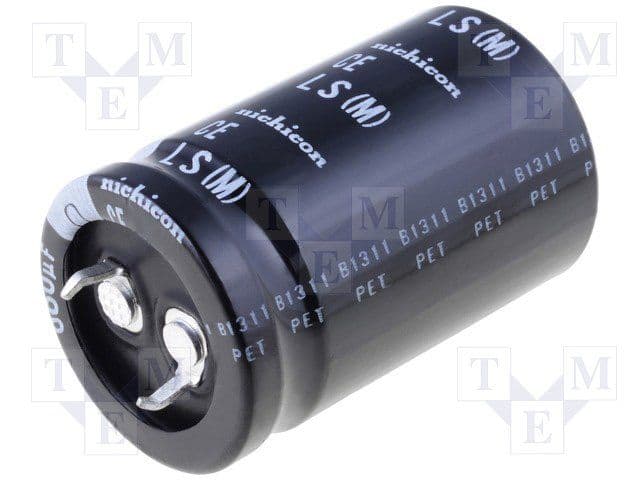

The Nichicon LLS2E821MELC is a radial aluminum electrolytic capacitor with a capacitance of 820uF and a tolerance of 20%. It has a voltage rating of 250V and a maximum operating temperature of 85°C. The capacitor is designed for through-hole mounting and has a diameter of 35mm and a height of 30mm. It is lead-free and RoHS compliant, with a leakage current of 1.35mA and a ripple current of 2.96A.
Checking distributor stock and pricing after the page loads.
| Capacitance | 820uF |
| Package/Case | Radial |
| Diameter | 35mm |
| Height | 30mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 1.35mA |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 2.96A |
| RoHS Compliant | Yes |
| Series | LLS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| RoHS | Compliant |
