Aluminum electrolytic capacitor with 100µF capacitance and 400V DC rated voltage. Features 20% tolerance, 950mA ripple current, and a 3000-hour life at 85°C. This through-hole component has a 22mm diameter, 25mm height, and 10mm lead pitch, with snap-in terminations. Operating temperature range is -25°C to 85°C.
PackageRadial
Voltage400V
Capacitance100uF
Voltage Rating400V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Nichicon LLS2G101MELZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Nichicon LLS2G101MELZ technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 22mm |
| Dielectric Material | Aluminium |
| Height | 25mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 600uA |
| Length | 25mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Package Quantity | 250 |
| Packaging | Bulk |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 950mA |
| Ripple Current (AC) | 950mA |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS2G101MELZ Datasheet
Download the complete datasheet for Nichicon LLS2G101MELZ to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

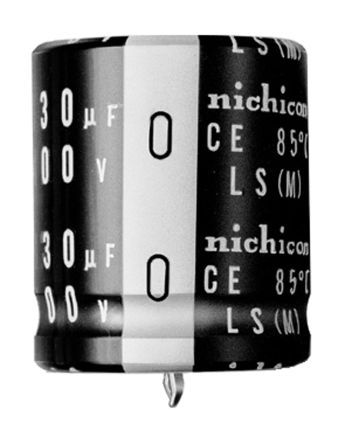

Product Images
