Technical Specifications
Nichicon LLS2G271MELB technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Diameter | 30mm |
| Height | 30mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 980uA |
| Length | 30mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, PCB |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.82A |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS2G271MELB Datasheet
Download the complete datasheet for Nichicon LLS2G271MELB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

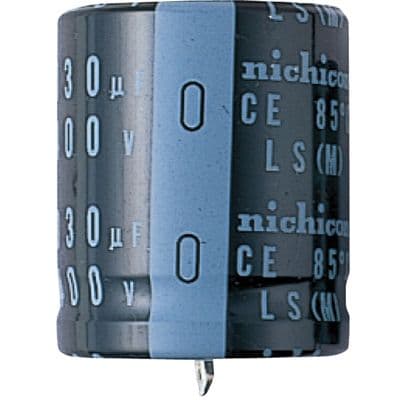

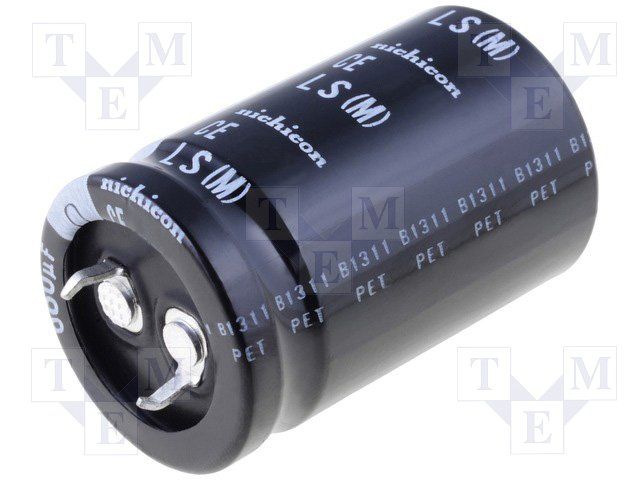

Product Images
