Aluminum electrolytic capacitor with 330µF capacitance and 400V DC rated voltage. Features 20% tolerance, 2.05A ripple current, and 1.08mA leakage current at 120Hz. Designed for general purpose applications with a 3000-hour life at 85°C. Snap-in termination, 10mm lead pitch, and 35mm diameter by 30mm height for through-hole PCB mounting. RoHS compliant.
Voltage400V
Capacitance330uF
Voltage Rating400V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Nichicon LLS2G331MELC technical specifications.
General
Capacitance
330uF
Diameter
35mm
Dielectric Material
Aluminium
Dissipation Factor
0.15%
Features
General Purpose
Height
30mm
Height - Seated (Max)
1.378inch
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
10mm
Leakage Current
1.08mA
Length
30mm
Life (Hours)
3000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
2.05A
RoHS Compliant
Yes
Series
LS
Termination
Snap in
Test Frequency
120Hz
Tolerance
20%
Voltage
400V
Voltage Rating
400V
DC Rated Voltage
400V
Compliance
RoHS
Compliant
Datasheet
Nichicon LLS2G331MELC Datasheet
Download the complete datasheet for Nichicon LLS2G331MELC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

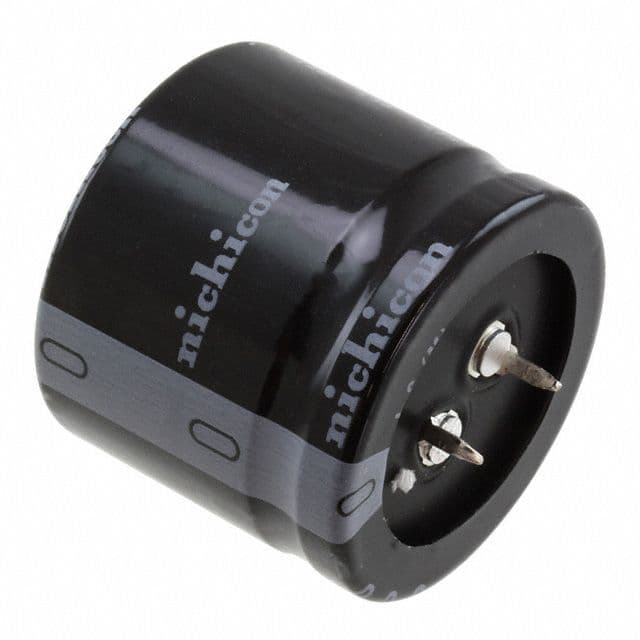

Product Images
