Aluminum electrolytic capacitor with 82µF capacitance and 450V DC rating. Features 20% tolerance, 860mA ripple current at 120Hz, and a leakage current of 570µA. Snap-in termination, through-hole mounting, and a 10mm lead pitch. Operates from -25°C to 85°C with a 3000-hour life expectancy. Dimensions are 22mm diameter and 25mm height.
PackageRadial
Capacitance82uF
Voltage Rating450V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon LLS2W820MELZ technical specifications.
General
| Capacitance | 82uF |
| Package/Case | Radial |
| Diameter | 22mm |
| Dissipation Factor | 0.2% |
| Height | 25mm |
| Height - Seated (Max) | 0.984inch |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Leakage Current | 570uA |
| Length | 25mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 860mA |
| RoHS Compliant | Yes |
| Series | LS |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon LLS2W820MELZ Datasheet
Download the complete datasheet for Nichicon LLS2W820MELZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

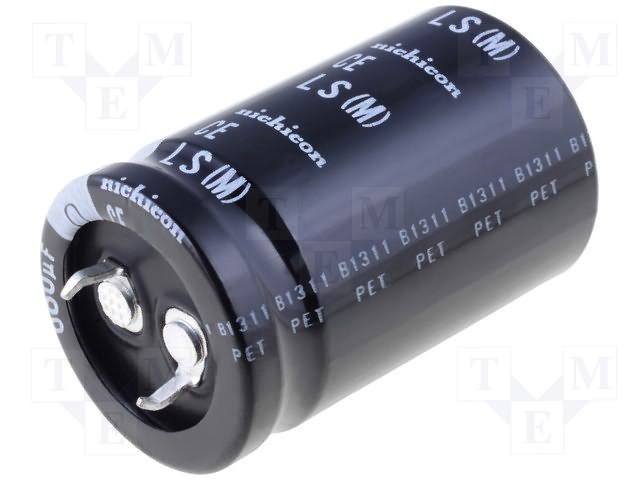

Product Images
