Nichicon
LNT2W332MSEH
Cap Aluminum Lytic 3300uF 450V 20% (76.2 X 130mm) Screw Terminal 17100mA 5000h 105°C Bulk
PackageRadial
Voltage450V
Capacitance3.3mF
Voltage Rating450V
Quick Jump:
Technical Specifications
Nichicon LNT2W332MSEH technical specifications.
General
Capacitance
3.3mF
Package/Case
Radial
Diameter
76.2mm
Features
General Purpose
Height
130mm
Height - Seated (Max)
5.236inch
Lead Pitch
1.252inch
Leakage Current
3.65mA
Length
130mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Chassis Mount
Package Quantity
5
Packaging
Bulk
Ripple Current
17.1A
RoHS Compliant
Yes
Series
NT
Termination
Screw
Tolerance
20%
Voltage
450V
Voltage Rating
450V
DC Rated Voltage
450V
Compliance
RoHS
Compliant
Datasheet
Nichicon LNT2W332MSEH Datasheet
Download the complete datasheet for Nichicon LNT2W332MSEH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

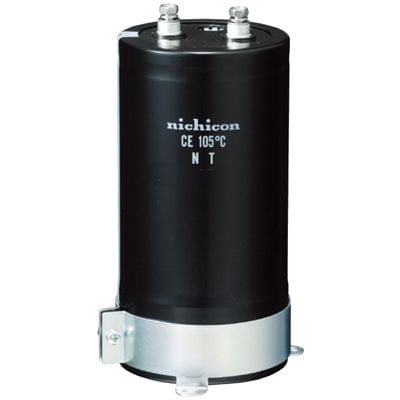

Product Images
