150µF, 16V polarized aluminum electrolytic capacitor with 20% tolerance. Features a low ESR of 25mΩ and a dissipation factor of 0.12%. Designed for surface mount applications with a cylindrical construction, measuring 10mm in diameter and 8mm in height. Rated for 2000 hours of life at 105°C, with a leakage current of 480µA and ripple current of 3.5A. This RoHS compliant component is supplied in tape and reel packaging.
PackageRadial
Capacitance150uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon PCF1C151MCL1GS technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 25mR |
| Height | 8mm |
| Lead Free | Lead Free |
| Leakage Current | 480uA |
| Length | 8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 3.5A |
| RoHS Compliant | Yes |
| Series | PCF |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCF1C151MCL1GS Datasheet
Download the complete datasheet for Nichicon PCF1C151MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

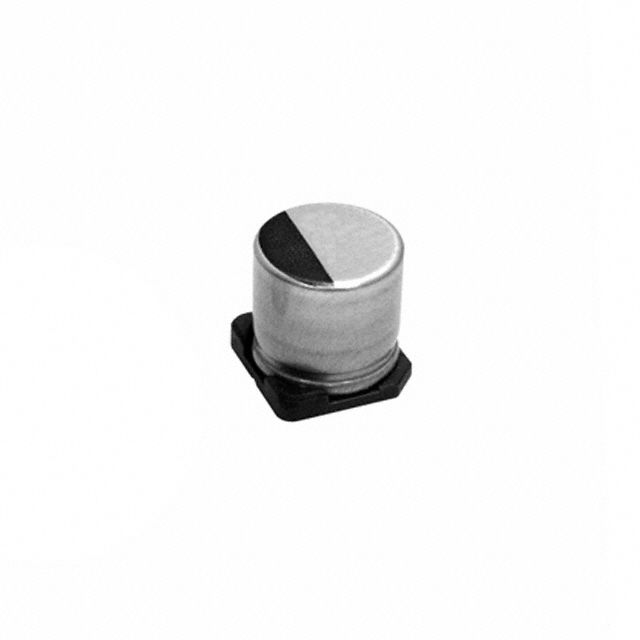

Product Images
