33µF, 25V polarized aluminum electrolytic capacitor with 20% tolerance. Features a low 30mΩ ESR and 2.8A ripple current capability. Designed for surface mount applications with a cylindrical construction, measuring 8mm in diameter and 12mm in height. Operates across a wide temperature range from -55°C to 105°C, offering 2000 hours of life. RoHS compliant and supplied in tape and reel packaging.
PackageRadial
Capacitance33uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon PCF1E330MCL1GS technical specifications.
General
| Capacitance | 33uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 30mR |
| Height | 12mm |
| Height - Seated (Max) | 0.472inch |
| Leakage Current | 412uA |
| Length | 12mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.8A |
| Ripple Current (AC) | 2.8A |
| RoHS Compliant | Yes |
| Series | CF |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 8.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCF1E330MCL1GS Datasheet
Download the complete datasheet for Nichicon PCF1E330MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

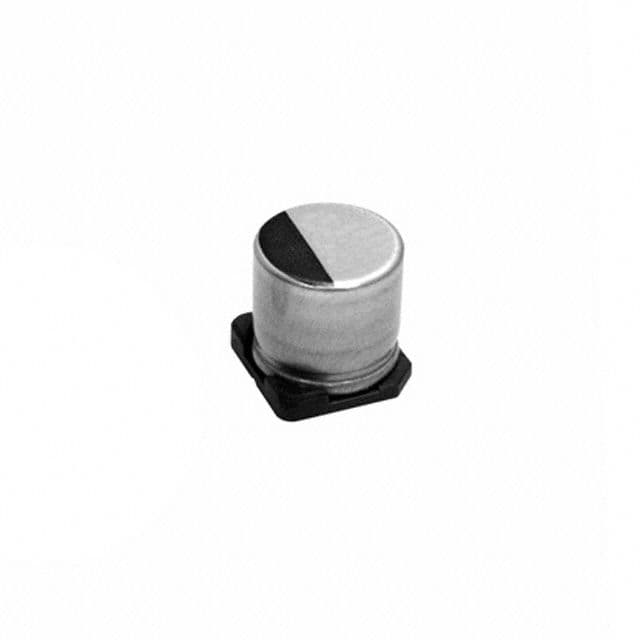

Product Images
