Nichicon
PCJ0E152MCL6GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 1500uF, Surface Mount, 3333, ROHS COMPLIANT
PackageRadial
Capacitance1.5mF
Voltage Rating2.5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon PCJ0E152MCL6GS technical specifications.
General
Capacitance
1.5mF
Package/Case
Radial
ESR (Equivalent Series Resistance)
10mR
Height - Seated (Max)
0.394inch
Length
10mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Ripple Current
5.22A
RoHS Compliant
Yes
Series
CJ
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
2.5V
DC Rated Voltage
2.5V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCJ0E152MCL6GS Datasheet
Download the complete datasheet for Nichicon PCJ0E152MCL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

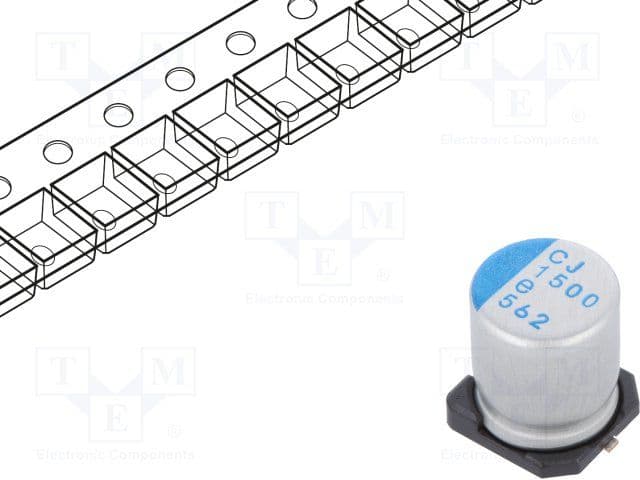

Product Images
