Surface mount aluminum polymer capacitor with 2.2mF capacitance and 2.5VDC voltage rating. Features 10mΩ ESR, 5.5A ripple current, and 20% tolerance. Operates from -55°C to 105°C with a 2000-hour life expectancy. Cylindrical construction, 10mm diameter and height, packaged in tape and reel.
PackageRadial
Voltage2.5V
Capacitance2.2mF
Voltage Rating2.5V
Quick Jump:
Technical Specifications
Nichicon PCJ0E222MCL1GS technical specifications.
General
| Capacitance | 2.2mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 10mR |
| Height | 10mm |
| Height - Seated (Max) | 0.394inch |
| Leakage Current | 1.1mA |
| Length | 10mm |
| Life (Hours) | 2000Hour |
| Material | Polymer |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 5.5A |
| RoHS Compliant | Yes |
| Series | CJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 2.5V |
| Voltage Rating | 2.5V |
| DC Rated Voltage | 2.5V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCJ0E222MCL1GS Datasheet
Download the complete datasheet for Nichicon PCJ0E222MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

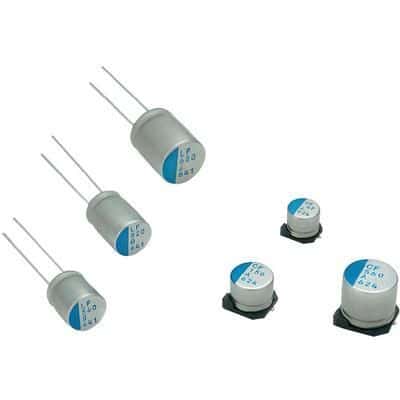

Product Images
