Technical Specifications
Nichicon PCJ0E471MCL1GS technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| ESR (Equivalent Series Resistance) | 13mR |
| Height | 8mm |
| Height - Seated (Max) | 0.315inch |
| Lead Free | Lead Free |
| Length | 6mm |
| Material | Polymer |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Ripple Current | 3.6A |
| RoHS Compliant | Yes |
| Series | CJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 2.5V |
| DC Rated Voltage | 2.5V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCJ0E471MCL1GS Datasheet
Download the complete datasheet for Nichicon PCJ0E471MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

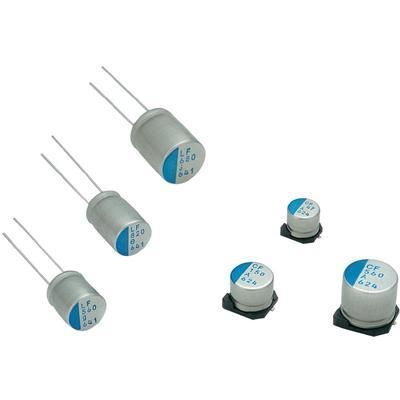

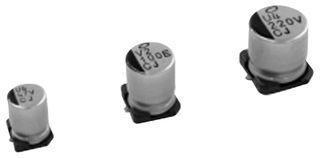

Product Images
