Aluminum Polymer Capacitor, 820µF capacitance, 2.5V DC rated voltage, and 20% tolerance. Features low 9mΩ ESR and 5.4A ripple current capability. Designed for surface mount applications with an 8mm diameter and 12mm height. Operating temperature range from -55°C to 105°C, with a 2000-hour life rating at maximum conditions.
PackageRadial
Voltage2.5V
Capacitance820uF
Voltage Rating2.5V
Quick Jump:
Technical Specifications
Nichicon PCJ0E821MCL1GS technical specifications.
General
| Capacitance | 820uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 9mR |
| Height | 12mm |
| Height - Seated (Max) | 0.472inch |
| Leakage Current | 410uA |
| Length | 12mm |
| Life (Hours) | 2000Hour |
| Material | Polymer |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 5.4A |
| RoHS Compliant | Yes |
| Series | CJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 2.5V |
| Voltage Rating | 2.5V |
| DC Rated Voltage | 2.5V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCJ0E821MCL1GS Datasheet
Download the complete datasheet for Nichicon PCJ0E821MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

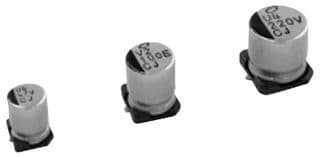

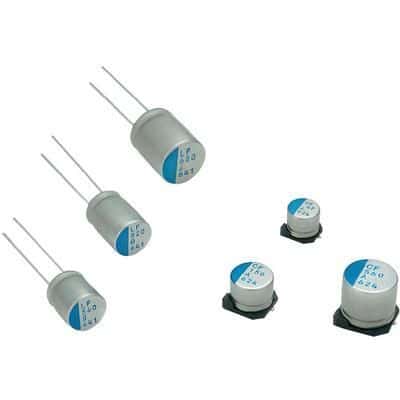

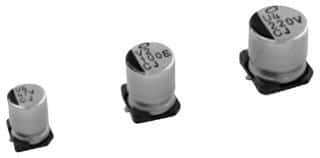

Product Images
