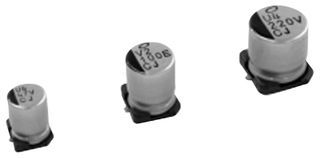

The Nichicon PCJ0G182MCL9GS is a 1.8mF aluminum electrolytic capacitor with a 20% tolerance. It features a radial package and is suitable for surface mount applications. The capacitor operates within a temperature range of -55°C to 105°C and is compliant with RoHS regulations. It has a maximum ripple current of 5.6A and a DC rated voltage of 4V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon PCJ0G182MCL9GS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon PCJ0G182MCL9GS technical specifications.
| Capacitance | 1.8mF |
| Package/Case | Radial |
| ESR (Equivalent Series Resistance) | 9mR |
| Height - Seated (Max) | 0.5inch |
| Length | 12.7mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 5.6A |
| RoHS Compliant | Yes |
| Series | CJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 4V |
| DC Rated Voltage | 4V |
| RoHS | Compliant |
Download the complete datasheet for Nichicon PCJ0G182MCL9GS to view detailed technical specifications.
