Aluminum Polymer Capacitor, 120µF capacitance, 6.3V DC rated voltage, and 20% tolerance. Features 24mΩ ESR, 2.5A ripple current, and 151µA leakage current. Operates from -55°C to 105°C with a 2000-hour life rating. Surface mountable in a 5x6mm cylindrical package, lead-free and RoHS compliant.
PackageRadial
Voltage6.3V
Capacitance120uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Nichicon PCJ0J121MCL1GS technical specifications.
General
| Capacitance | 120uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 24mR |
| Height | 6mm |
| Lead Free | Lead Free |
| Leakage Current | 151uA |
| Length | 6mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 2.5A |
| RoHS Compliant | Yes |
| Series | CJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCJ0J121MCL1GS Datasheet
Download the complete datasheet for Nichicon PCJ0J121MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

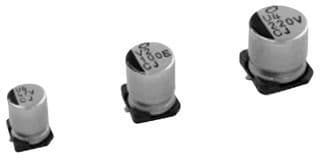

Product Images
