120µF, 10V polarized aluminum electrolytic capacitor with 20% tolerance. Features a 25mΩ ESR, 2.53A ripple current, and a dissipation factor of 0.12%. Operating temperature range is -55°C to 105°C with a leakage current of 240µA. This surface mount component has a cylindrical construction, measuring 6.3mm in diameter and 6mm in height, and is supplied on tape and reel.
PackageRadial
Voltage10V
Capacitance120uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon PCJ1A121MCL1GS technical specifications.
General
| Capacitance | 120uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 25mR |
| Height | 6mm |
| Leakage Current | 240uA |
| Length | 6mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 2.53A |
| RoHS Compliant | Yes |
| Series | CJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCJ1A121MCL1GS Datasheet
Download the complete datasheet for Nichicon PCJ1A121MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

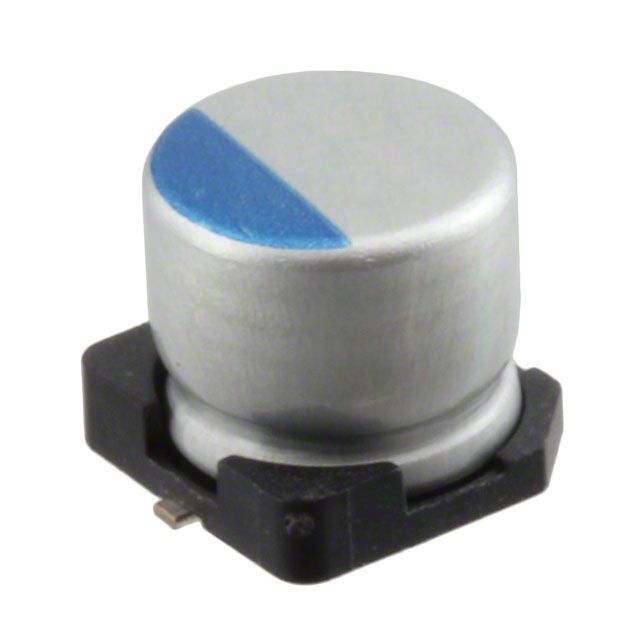

Product Images
