Nichicon
PCJ1A151MCL1GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 10V, 20% +Tol, 20% -Tol, 150uF, Surface Mount, 2626, ROHS COMPLIANT
PackageRadial
Capacitance150uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon PCJ1A151MCL1GS technical specifications.
General
Capacitance
150uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
ESR (Equivalent Series Resistance)
21mR
Height
8mm
Height - Seated (Max)
0.315inch
Length
8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
900
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
2.88A
RoHS Compliant
Yes
Series
CJ
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCJ1A151MCL1GS Datasheet
Download the complete datasheet for Nichicon PCJ1A151MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

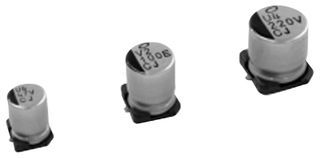

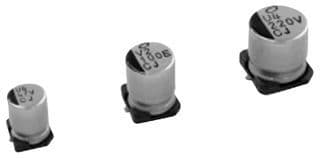

Product Images
