Technical Specifications
Nichicon PCJ1A391MCL1GS technical specifications.
General
| Capacitance | 390uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| ESR (Equivalent Series Resistance) | 17mR |
| Height - Seated (Max) | 0.394inch |
| Length | 10mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Ripple Current | 4A |
| RoHS Compliant | Yes |
| Series | CJ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCJ1A391MCL1GS Datasheet
Download the complete datasheet for Nichicon PCJ1A391MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

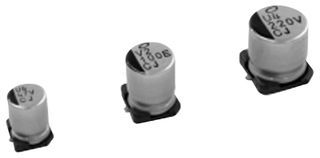

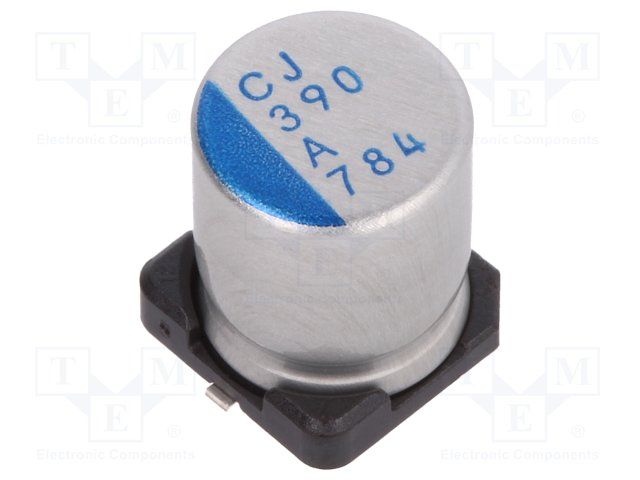

Product Images
