Aluminum Polymer Capacitor, 470µF capacitance, 10V DC rated voltage, 20% tolerance. Features 19mΩ ESR, 3.8A ripple current, and 940µA leakage current. Operates from -55°C to 105°C with a 2000-hour life rating. Surface mount, cylindrical construction, 10mm diameter, 8mm height, with SMD/SMT termination. Lead-free and RoHS compliant.
PackageRadial
Voltage10V
Capacitance470uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon PCJ1A471MCL1GS technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
19mR
Height
8mm
Height - Seated (Max)
0.315inch
Lead Free
Lead Free
Leakage Current
940uA
Length
10mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
3.8A
RoHS Compliant
Yes
Series
CJ
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCJ1A471MCL1GS Datasheet
Download the complete datasheet for Nichicon PCJ1A471MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

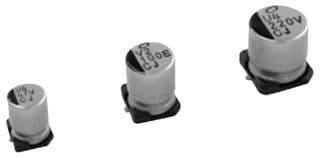

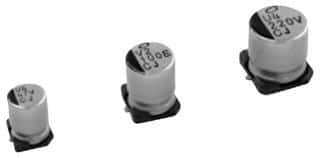

Product Images
