Nichicon
PCJ1C101MCL4GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, ROHS COMPLIANT
PackageRadial
Capacitance100uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon PCJ1C101MCL4GS technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
ESR (Equivalent Series Resistance)
24mR
Height - Seated (Max)
0.315inch
Lead Free
Lead Free
Length
8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
900
Packaging
Tape and Reel
Ripple Current
2.7A
RoHS Compliant
Yes
Series
CJ
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCJ1C101MCL4GS Datasheet
Download the complete datasheet for Nichicon PCJ1C101MCL4GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

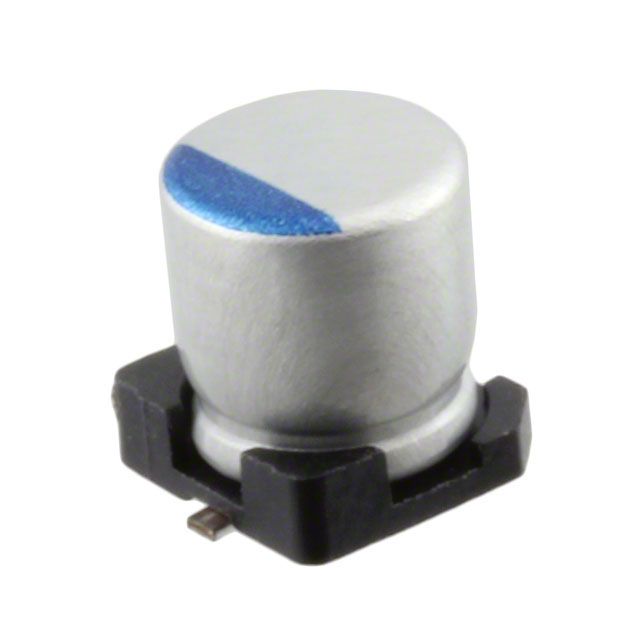

Product Images
