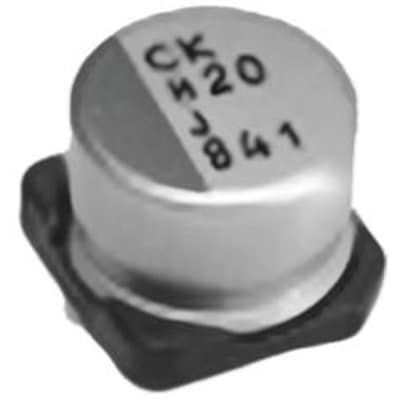

Aluminum electrolytic capacitor, polarized, with a capacitance of 820µF and a voltage rating of 6.3V. Features a 20% tolerance, 9mΩ ESR, and a ripple current of 5A. This surface mount component has a cylindrical construction with a 10mm diameter and 8mm height, operating from -55°C to 105°C. RoHS compliant with a 2000-hour life rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon PCK0J821MCO1GS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nichicon PCK0J821MCO1GS technical specifications.
| Capacitance | 820uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| ESR (Equivalent Series Resistance) | 9mR |
| Height | 8mm |
| Lead Free | Lead Free |
| Leakage Current | 1.55mA |
| Length | 8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 5A |
| RoHS Compliant | Yes |
| Series | PCK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| RoHS | Compliant |
Download the complete datasheet for Nichicon PCK0J821MCO1GS to view detailed technical specifications.
