Aluminum Polymer Capacitor, 470µF capacitance, 16V DC rated voltage, 20% tolerance. Features low ESR of 17mΩ, ripple current capability of 3.4A, and a maximum operating temperature of 125°C. Surface mount design with 8mm diameter and 10mm height, packaged in tape and reel. Suitable for automotive applications with a rated life of 4000 hours.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon PCR1C471MCL6GS technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Depth | 8.3mm |
| Diameter | 8mm |
| Dissipation Factor | 0.08% |
| ESR (Equivalent Series Resistance) | 17mR |
| Height | 10mm |
| Height - Seated (Max) | 0.398inch |
| Lead Pitch | 3.2mm |
| Leakage Current | 3uA |
| Length | 10mm |
| Life (Hours) | 4000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 3.4A |
| RoHS Compliant | Yes |
| Series | CR |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 0.026455oz |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCR1C471MCL6GS Datasheet
Download the complete datasheet for Nichicon PCR1C471MCL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

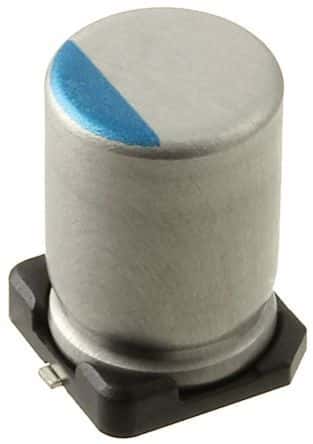

Product Images
