This polarized aluminum electrolytic capacitor offers 470µF capacitance with a 20V DC rating and ±20% tolerance. Featuring a low 18mΩ ESR and 3.5A ripple current capability, it operates from -55°C to 125°C with a 4000-hour life expectancy. Designed for surface mount applications, this RoHS compliant component is supplied in tape and reel packaging.
PackageRadial
Voltage20V
Capacitance470uF
Voltage Rating20V
Quick Jump:
Technical Specifications
Nichicon PCR1D471MCL1GS technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Depth | 8.3mm |
| Diameter | 8mm |
| Dissipation Factor | 0.08% |
| ESR (Equivalent Series Resistance) | 18mR |
| Height | 12mm |
| Lead Pitch | 3.2mm |
| Leakage Current | 3uA |
| Length | 12mm |
| Life (Hours) | 4000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Ripple Current | 3.5A |
| RoHS Compliant | Yes |
| Series | PCR |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 20V |
| Voltage Rating | 20V |
| DC Rated Voltage | 20V |
| Weight | 0.031747oz |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCR1D471MCL1GS Datasheet
Download the complete datasheet for Nichicon PCR1D471MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

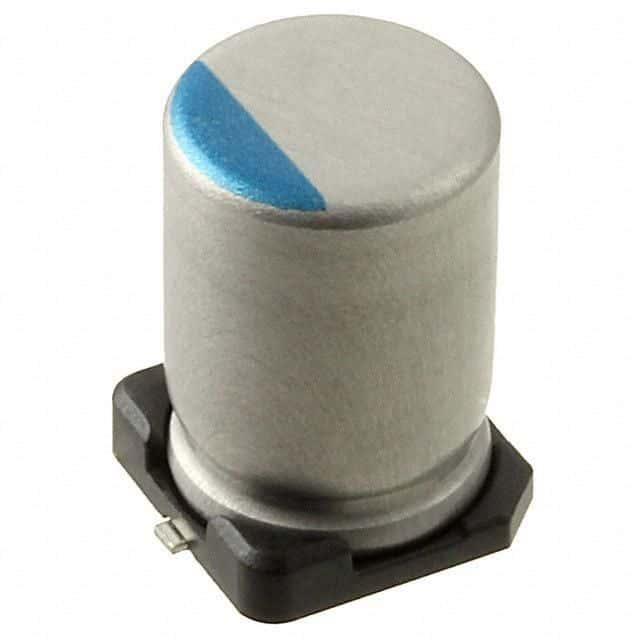

Product Images
