Aluminum Polymer Capacitor, 270µF capacitance, 25VDC voltage rating, and 20% tolerance. Features a low ESR of 19mΩ and a ripple current capability of 3.3A. Operates across a wide temperature range from -55°C to 125°C with a lifespan of 4000 hours. Surface mountable with SMD/SMT termination, packaged in cut tape.
PackageRadial
Voltage25V
Capacitance270uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon PCR1E271MCL1GS technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| Depth | 8.3mm |
| Diameter | 8mm |
| ESR (Equivalent Series Resistance) | 19mR |
| Height | 11.9mm |
| Height - Seated (Max) | 0.476inch |
| Lead Pitch | 3.2mm |
| Leakage Current | 3uA |
| Length | 8.3mm |
| Life (Hours) | 4000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Ripple Current | 3.3A |
| Ripple Current (AC) | 3.3A |
| RoHS Compliant | Yes |
| Series | CR |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCR1E271MCL1GS Datasheet
Download the complete datasheet for Nichicon PCR1E271MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

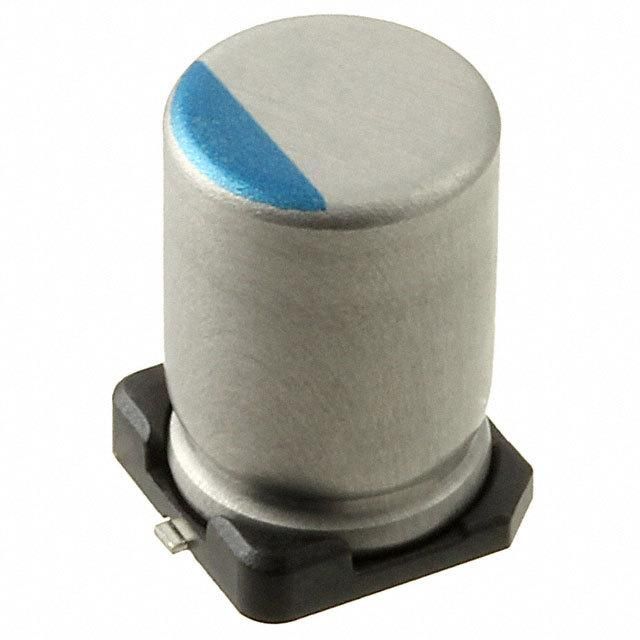

Product Images
