Surface mount aluminum electrolytic capacitor, polarized, featuring 470µF capacitance and 25V DC rated voltage. Offers 20% tolerance, 15mΩ ESR, and 4.1A ripple current. Operates across a -55°C to 125°C temperature range with a 4000-hour life rating. RoHS compliant, packaged in tape and reel for automated assembly.
PackageRadial
Voltage25V
Capacitance470uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon PCR1E471MCL1GS technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Depth | 10.3mm |
| Diameter | 10mm |
| Dissipation Factor | 0.08% |
| ESR (Equivalent Series Resistance) | 15mR |
| Height | 12.7mm |
| Lead Pitch | 4.6mm |
| Leakage Current | 3uA |
| Length | 12.7mm |
| Life (Hours) | 4000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Ripple Current | 4.1A |
| RoHS Compliant | Yes |
| Series | PCR |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Weight | 0.045856oz |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCR1E471MCL1GS Datasheet
Download the complete datasheet for Nichicon PCR1E471MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

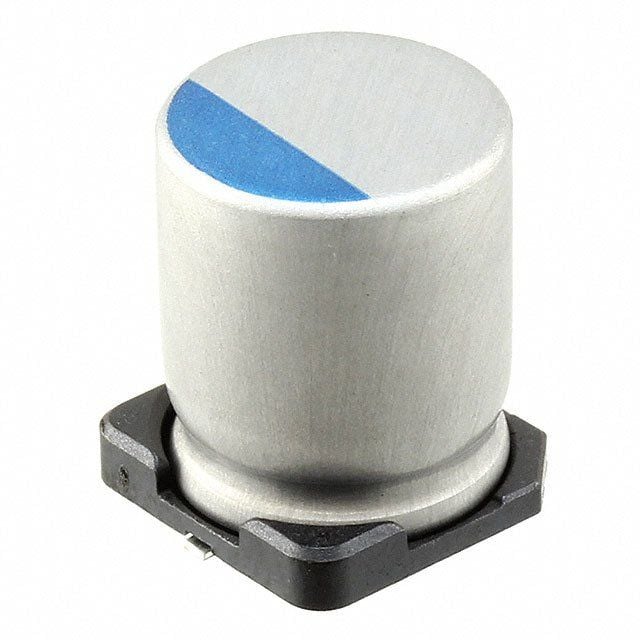

Product Images
