63V, 47uF polarized aluminum electrolytic capacitor with 20% tolerance. Features a low ESR of 35mR and a ripple current rating of 2.1A. Designed for surface mount applications with a radial package, measuring 10mm in diameter and 8mm in height. Operates across a wide temperature range from -55°C to 125°C, offering 4000 hours of life. RoHS compliant and supplied on tape and reel.
PackageRadial
Voltage63V
Capacitance47uF
Voltage Rating63V
Quick Jump:
Technical Specifications
Nichicon PCR1J470MCL1GS technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Depth | 10.3mm |
| Diameter | 10mm |
| Dissipation Factor | 0.08% |
| ESR (Equivalent Series Resistance) | 35mR |
| Height | 8mm |
| Height - Seated (Max) | 0.319inch |
| Lead Pitch | 4.6mm |
| Leakage Current | 3uA |
| Length | 8mm |
| Life (Hours) | 4000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 2.1A |
| RoHS Compliant | Yes |
| Series | CR |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
| Weight | 0.029983oz |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCR1J470MCL1GS Datasheet
Download the complete datasheet for Nichicon PCR1J470MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

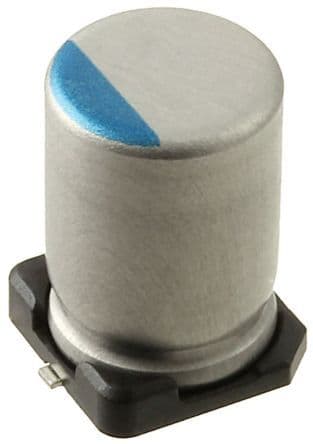

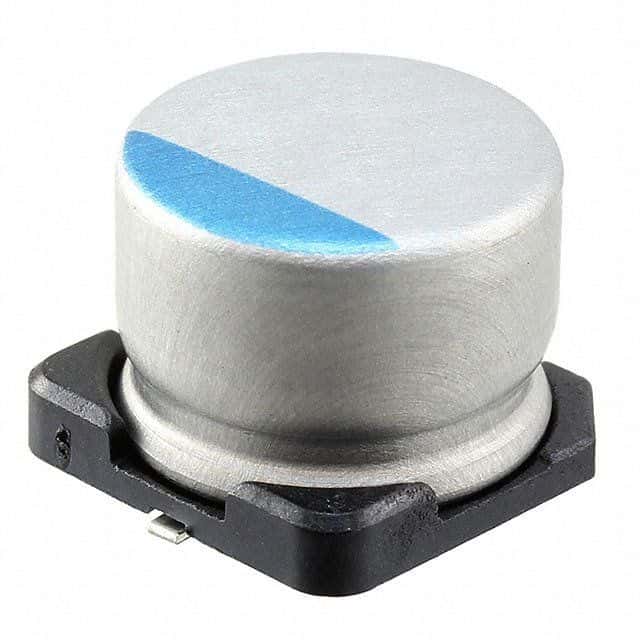

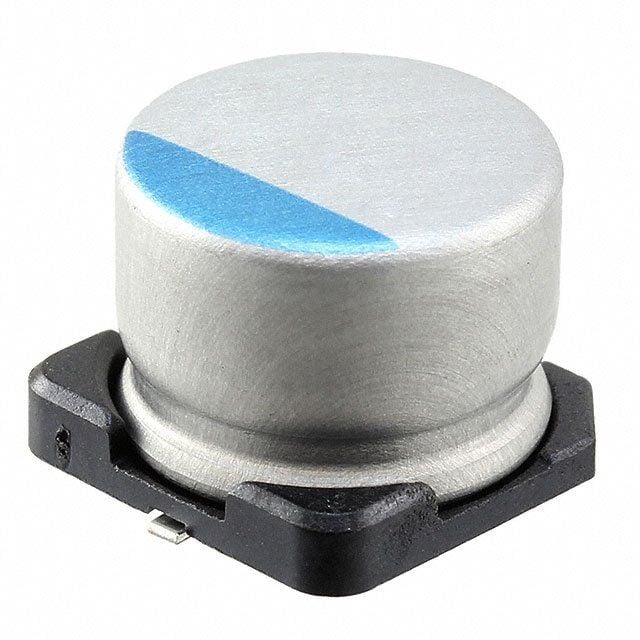

Product Images
