150µF, 35V polarized aluminum electrolytic capacitor with 20% tolerance, designed for surface mount applications. Features a low ESR of 25mΩ and a dissipation factor of 0.08%. Operates across a wide temperature range of -55°C to 125°C with a rated ripple current of 2.5A. This RoHS compliant component offers a leakage current of 3µA and a lifespan of 4000 hours at maximum operating temperature. Packaged in tape and reel for efficient PCB assembly.
PackageRadial
Voltage35V
Capacitance150uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon PCR1V151MCL1GS technical specifications.
General
Capacitance
150uF
Package/Case
Radial
Depth
10.3mm
Diameter
10mm
Dissipation Factor
0.08%
ESR (Equivalent Series Resistance)
25mR
Height
8mm
Lead Pitch
4.6mm
Leakage Current
3uA
Length
8mm
Life (Hours)
4000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Ripple Current
2.5A
RoHS Compliant
Yes
Series
PCR
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Weight
0.029983oz
Compliance
RoHS
Compliant
Datasheet
Nichicon PCR1V151MCL1GS Datasheet
Download the complete datasheet for Nichicon PCR1V151MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

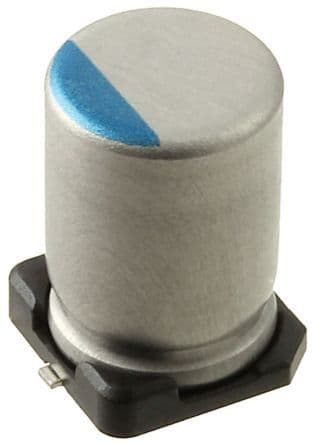

Product Images
