Aluminum polymer capacitor, 220µF capacitance, 35VDC voltage rating, and 20% tolerance. Features low ESR of 21mΩ, high ripple current capability of 3.3A, and a maximum operating temperature of 125°C. Surface mountable with dimensions of 8mm diameter and 12mm height, packaged in tape and reel. Designed for demanding applications with a life expectancy of 4000 hours.
PackageRadial
Voltage35V
Capacitance220uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon PCR1V221MCL1GS technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Depth
8.3mm
Diameter
8mm
Dissipation Factor
0.08%
ESR (Equivalent Series Resistance)
21mR
Height
12mm
Height - Seated (Max)
0.476inch
Lead Free
Lead Free
Lead Pitch
3.2mm
Leakage Current
3uA
Length
12mm
Life (Hours)
4000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
3.3A
RoHS Compliant
Yes
Series
CR
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Weight
0.031747oz
Compliance
RoHS
Compliant
Datasheet
Nichicon PCR1V221MCL1GS Datasheet
Download the complete datasheet for Nichicon PCR1V221MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

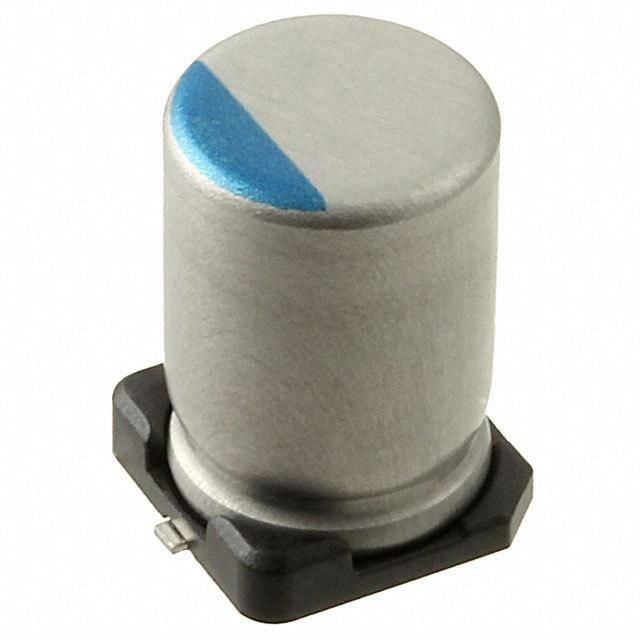

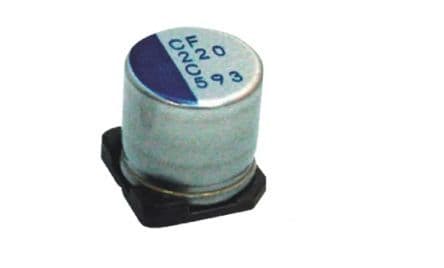

Product Images
