330µF, 35V polarized aluminum electrolytic capacitor with 20% tolerance. Features a low 16mΩ ESR and 3.9A ripple current capability. Designed for surface mount applications with a radial package, measuring 10mm diameter and 10.3mm depth. Operates across a wide temperature range from -55°C to 125°C with a 4000-hour life rating. RoHS compliant for environmental responsibility.
PackageRadial
Voltage35V
Capacitance330uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon PCR1V331MCL1GS technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Depth
10.3mm
Diameter
10mm
Dissipation Factor
0.08%
ESR (Equivalent Series Resistance)
16mR
Height
12.7mm
Lead Pitch
4.6mm
Leakage Current
3uA
Length
12.7mm
Life (Hours)
4000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
400
Packaging
Tape and Reel
Ripple Current
3.9A
RoHS Compliant
Yes
Series
PCR
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Weight
0.045856oz
Compliance
RoHS
Compliant
Datasheet
Nichicon PCR1V331MCL1GS Datasheet
Download the complete datasheet for Nichicon PCR1V331MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

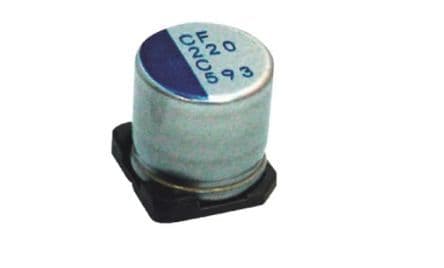

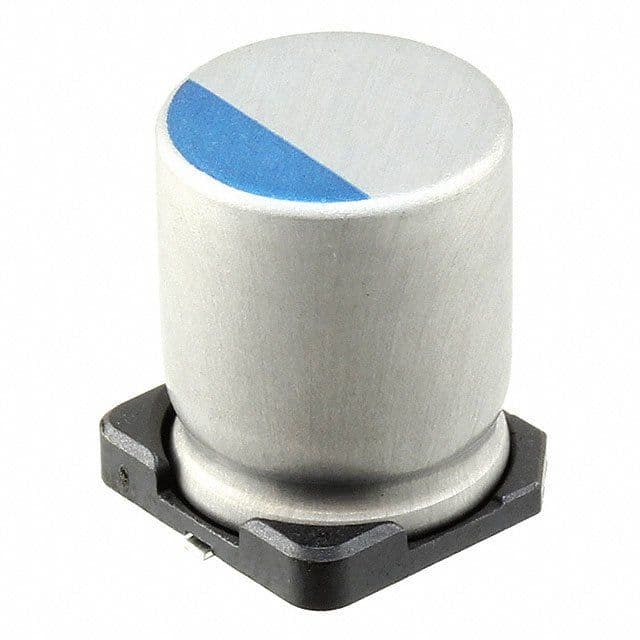

Product Images
