150µF, 4VDC aluminum polymer capacitor with 20% tolerance. Features 25mΩ ESR and 2.2A ripple current capability. Designed for surface mount applications with a 5x6mm cylindrical package. Offers 5000 hours of life at 105°C, operating from -55°C to 105°C. Lead-free and RoHS compliant.
PackageRadial
Voltage4V
Capacitance150uF
Voltage Rating4V
Quick Jump:
Technical Specifications
Nichicon PCS0G151MCL1GS technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| ESR (Equivalent Series Resistance) | 25mR |
| Height | 6mm |
| Height - Seated (Max) | 0.236inch |
| Lead Free | Lead Free |
| Leakage Current | 120uA |
| Length | 6mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 2.2A |
| RoHS Compliant | Yes |
| Series | CS |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 4V |
| Voltage Rating | 4V |
| DC Rated Voltage | 4V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCS0G151MCL1GS Datasheet
Download the complete datasheet for Nichicon PCS0G151MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

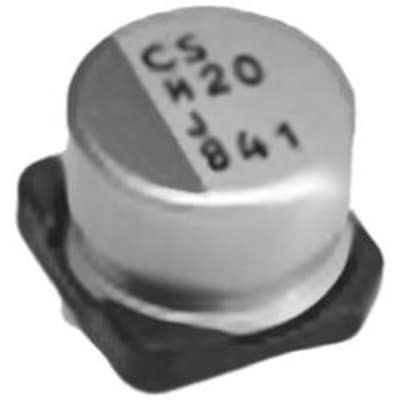

Product Images
