330µF, 4V polarized aluminum electrolytic capacitor featuring a solid polymer construction. This surface mount component offers a low ESR of 20mΩ and a ripple current rating of 2.8A. Operating across a wide temperature range from -55°C to 105°C, it provides a rated voltage of 4V DC. The capacitor is supplied in a 2626 chip package, measuring 6.3mm in diameter and 6mm in height, and is RoHS compliant.
PackageRadial
Voltage4V
Capacitance330uF
Voltage Rating4V
Quick Jump:
Technical Specifications
Nichicon PCS0G331MCL1GS technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| ESR (Equivalent Series Resistance) | 20mR |
| Height | 6mm |
| Height - Seated (Max) | 0.236inch |
| Leakage Current | 264uA |
| Length | 6mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 2.8A |
| RoHS Compliant | Yes |
| Series | PCS |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 4V |
| Voltage Rating | 4V |
| DC Rated Voltage | 4V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCS0G331MCL1GS Datasheet
Download the complete datasheet for Nichicon PCS0G331MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

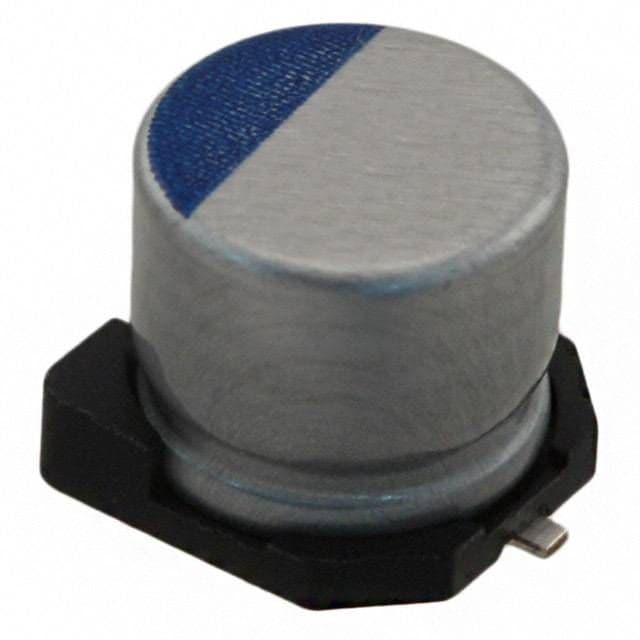

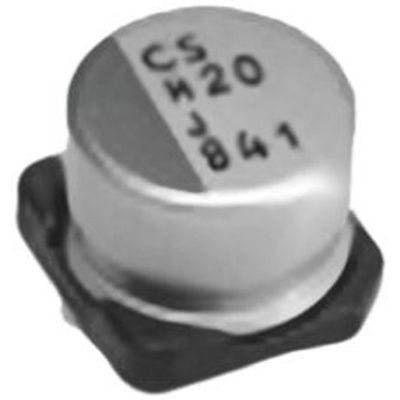

Product Images
