Nichicon
PCS1A560MCL9GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 10V, 20% +Tol, 20% -Tol, 56uF, Surface Mount, 2626, CHIP, ROHS COMPLIANT
PackageRadial
Voltage10V
Capacitance56uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon PCS1A560MCL9GS technical specifications.
General
Capacitance
56uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
ESR (Equivalent Series Resistance)
27mR
Height
6mm
Leakage Current
112uA
Length
6mm
Life (Hours)
5000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
2.3A
RoHS Compliant
Yes
Series
PCS
Termination
SMD/SMT
Tolerance
20%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCS1A560MCL9GS Datasheet
Download the complete datasheet for Nichicon PCS1A560MCL9GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

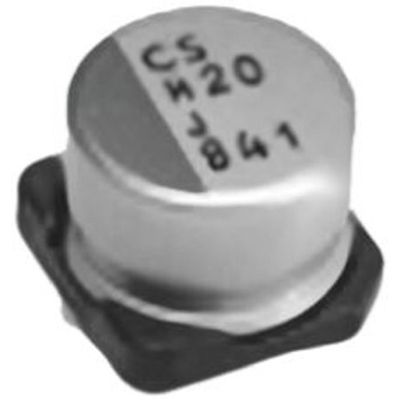

Product Images
