Nichicon
PCV1C271MCL1GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 270uF, Surface Mount, 3333, CHIP, ROHS COMPLIANT
PackageRadial
Voltage16V
Capacitance270uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon PCV1C271MCL1GS technical specifications.
General
Capacitance
270uF
Package/Case
Radial
Diameter
8mm
ESR (Equivalent Series Resistance)
26mR
Height
12mm
Lead Pitch
3.2mm
Leakage Current
864uA
Length
12mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
400
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
PCV
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV1C271MCL1GS Datasheet
Download the complete datasheet for Nichicon PCV1C271MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

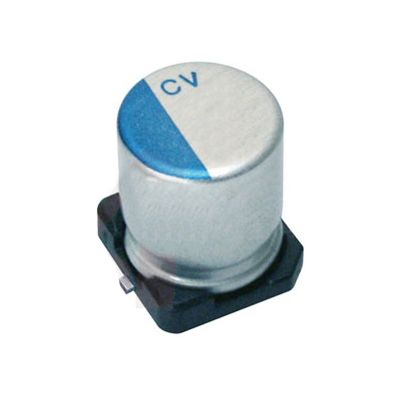

Product Images
