Nichicon
PCV1C471MCL1GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 470uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon PCV1C471MCL1GS technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Diameter
10mm
ESR (Equivalent Series Resistance)
25mR
Height
12.7mm
Height - Seated (Max)
0.5inch
Lead Pitch
4.6mm
Leakage Current
1.504mA
Length
12.7mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
2.8A
RoHS Compliant
Yes
Series
CV
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV1C471MCL1GS Datasheet
Download the complete datasheet for Nichicon PCV1C471MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

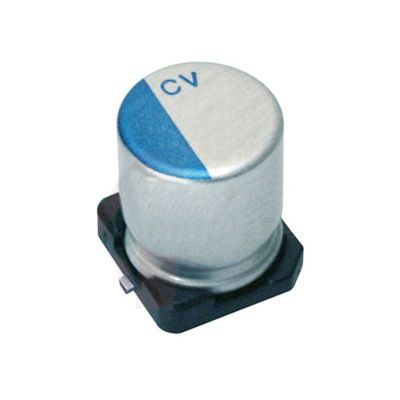

Product Images
