Technical Specifications
Nichicon PCV1D271MCL1GS technical specifications.
General
| Capacitance | 270uF |
| Package/Case | Radial |
| ESR (Equivalent Series Resistance) | 27mR |
| Height - Seated (Max) | 0.394inch |
| Length | 10mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 2.3A |
| RoHS Compliant | Yes |
| Series | CV |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon PCV1D271MCL1GS Datasheet
Download the complete datasheet for Nichicon PCV1D271MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

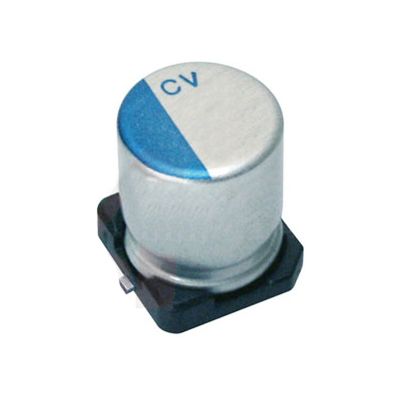

Product Images
