Nichicon
PCV1E121MCL6GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 25V, 20% +Tol, 20% -Tol, 120uF, Surface Mount, 3333, CHIP, ROHS COMPLIANT
PackageRadial
Capacitance120uF
Resistance0.029R
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon PCV1E121MCL6GS technical specifications.
General
Capacitance
120uF
Package/Case
Radial
ESR (Equivalent Series Resistance)
29mR
Length
10mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Resistance
0.029R
RoHS Compliant
Yes
Series
PCV
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV1E121MCL6GS Datasheet
Download the complete datasheet for Nichicon PCV1E121MCL6GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

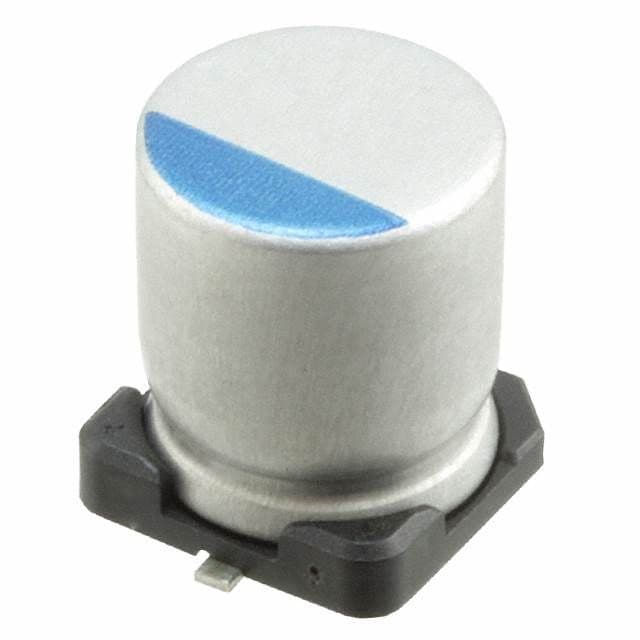

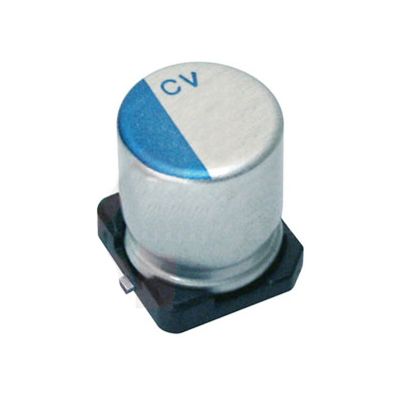

Product Images
