Nichicon
PCV1E151MCL1GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 25V, 20% +Tol, 20% -Tol, 150uF, Surface Mount, 3333, CHIP, ROHS COMPLIANT
PackageRadial
Voltage25V
Capacitance150uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon PCV1E151MCL1GS technical specifications.
General
Capacitance
150uF
Package/Case
Radial
Diameter
8mm
ESR (Equivalent Series Resistance)
28mR
Height
12mm
Lead Pitch
3.2mm
Leakage Current
750uA
Length
12mm
Life (Hours)
3000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
400
Packaging
Tape and Reel
Ripple Current (AC)
2.2A
RoHS Compliant
Yes
Series
PCV
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon PCV1E151MCL1GS Datasheet
Download the complete datasheet for Nichicon PCV1E151MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

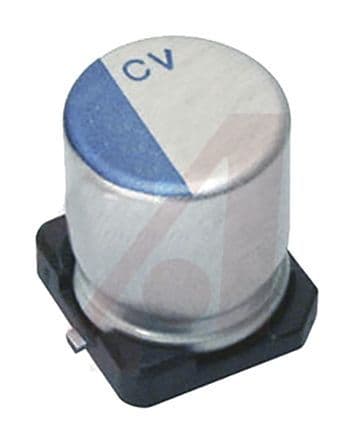

Product Images
